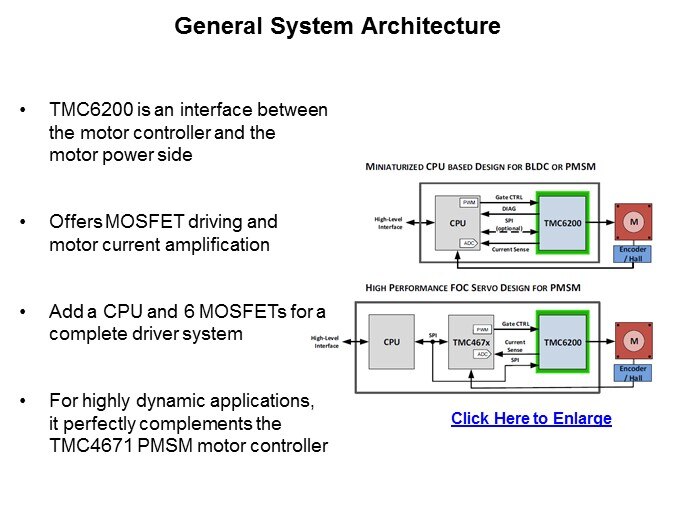

Image of Trinamic TMC6200-Slide5 BLDC

The TMC6200 Gate Driver is an interface between the motor controller and the motor power side. It offers MOSFET driving and motor current amplification. Adding a CPU and six MOSFETs gives a complete driver system. For highly dynamic applications, it perfectly adds to the TMC4671 PMSM motor controller. It provides a high performance FOC servo design for PMSM.

PTM Published on: 2019-08-08
