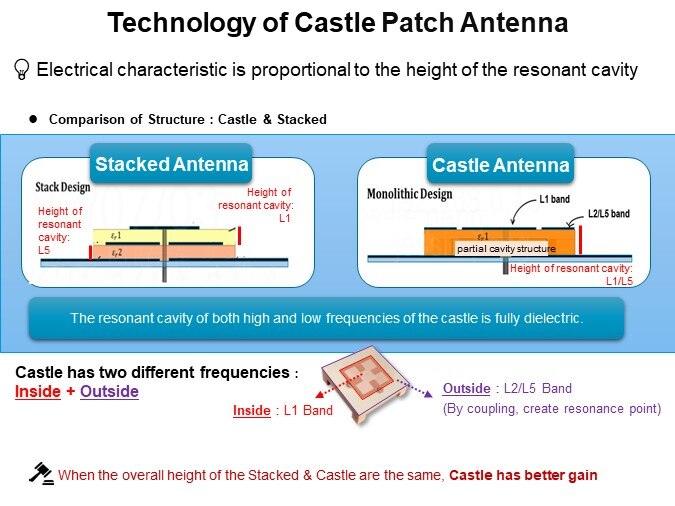

Technology of Castle Patch Antenna

Because the electrical characteristic is proportional to the height of the resonant cavity, shown here is the height of L1 and L5, the castle is thicker than the stacked antenna. As a result, when the overall height of the stacked and castle are the same. Castle will perform better gain performance than the stacked antenna.
