Tight Tolerance "Super Miniature" Crystal - ECX-1637/2236 (CKM)

ECS crystals provide high-reliability, long-term stability, and are ideal for microprocessor applications

Image of ECS Inc International's Tight Tolerance 'Super Miniature' Crystal - ECX-1637/2236 (CKM)Because they provide high-reliability and long-term stability, ECS crystals are ideal for microprocessor applications. All products feature low series resistance, precision frequency selection, and stable frequency tolerance within their specified temperature range.

Available in tape and reel (TR-ND), cut tape (CT-ND), and custom Digi-Reel® (DKR-ND).


Image of ECS Inc International's Tight Tolerance 'Super Miniature' Crystal - ECX-1637/2236 (CKM)

Features

  • 24.00 MHz to 80.00 MHz frequency range (1637)
  • 16.00 MHz to 80.00 MHZ frequency range (2236)
  • ±10 ppm frequency stability from -20°C to +70°C

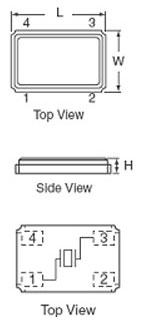

  • 1.6 mm x 2.0 mm x 0.45 mm footprint / 2.0 mm x 2.5 mm x 0.55 mm footprint
  • RoHS-compliant - meets requirements for re-flow profiling using lead-free solder
  • Excellent shock and vibration characteristics
  • Hand-held computing, POS terminals, medical sensors, RFID, telecommunications, tracking devices, migration tracking, and more

ECX-2236

画像メーカー品番商品概要周波数入手可能な数量
CRYSTAL 16.384MHZ 10PF SMDECS-163.84-10-36-JGN-TRCRYSTAL 16.384MHZ 10PF SMD16.384MHz14849 - 即時
4063 - 工場在庫品
詳細を閲覧
CRYSTAL 26MHZ 8PF SMDECS-260-8-36-CKY-TRCRYSTAL 26MHZ 8PF SMD26MHz6800 - 即時
1548 - 工場在庫品
詳細を閲覧
CRYSTAL 26MHZ 7PF SMDECS-260-7-36-CKY-TRCRYSTAL 26MHZ 7PF SMD26MHz2982 - 即時詳細を閲覧
CRYSTAL 24.0000MHZ 8PF SMDECS-240-8-36CKM-TRCRYSTAL 24.0000MHZ 8PF SMD24MHz13529 - 即時
46341 - 工場在庫品
詳細を閲覧
CRYSTAL 30.0000MHZ 8PF SMDECS-300-8-36CKM-TRCRYSTAL 30.0000MHZ 8PF SMD30MHz18659 - 即時
2000 - 工場在庫品
詳細を閲覧

ECX-1637

画像メーカー品番商品概要周波数入手可能な数量
CRYSTAL 32MHZ 12PF SMDECS-320-12-37-CKM-TRCRYSTAL 32MHZ 12PF SMD32MHz3078 - 即時詳細を閲覧
CRYSTAL 16MHZ 9PF SMDECS-160-9-37-CKM-TRCRYSTAL 16MHZ 9PF SMD16MHz6090 - 即時
5394 - 工場在庫品
詳細を閲覧
CRYSTAL 30MHZ 10PF SMDECS-300-10-37-CKM-TRCRYSTAL 30MHZ 10PF SMD30MHz3520 - 即時
1230 - 工場在庫品
詳細を閲覧
CRYSTAL 32.0000MHZ 8PF SMDECS-320-8-37CKMCRYSTAL 32.0000MHZ 8PF SMD32MHz7896 - 即時
338030 - 工場在庫品
詳細を閲覧
CRYSTAL 24.0000MHZ 8PF SMDECS-240-8-37CKMCRYSTAL 24.0000MHZ 8PF SMD24MHz15113 - 即時
3122 - 工場在庫品
詳細を閲覧
刊行: 2013-11-13
