TRI 3/6/10/15/20 Series 3.5 W to 20 W DC/DC Converters

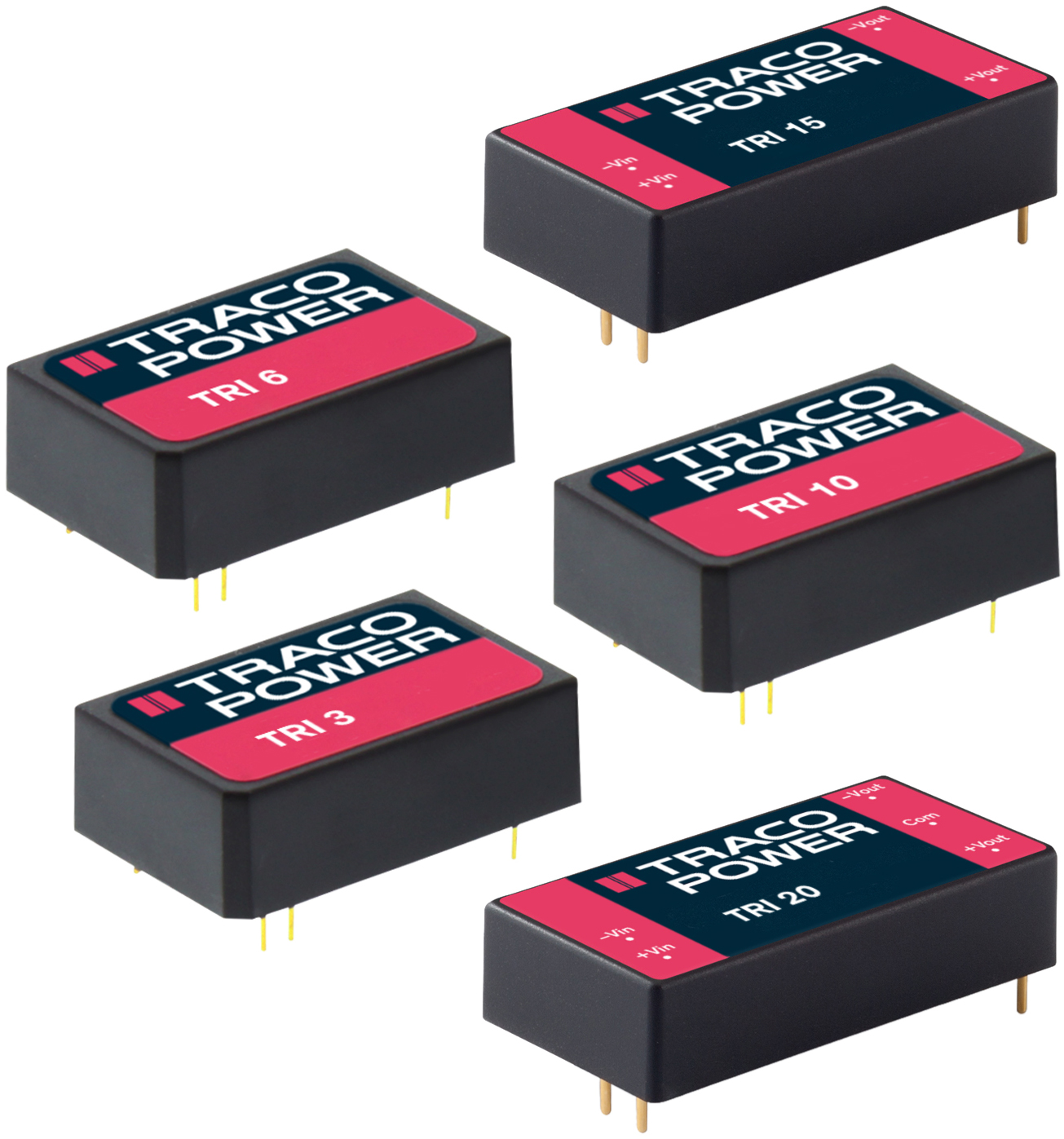

TRACO Power's TRI series are high isolation, regulated DC/DC converters which come in in compact DIP-24 (3 W to 10 W) or 2" x 1" (15 W to 20 W) packages. The key characteristics of the TRI line are a sophisticated reinforced isolation system able to withstand high test voltages with a working voltage of 1,000 V_AC(RMS) and high common mode transient immunity of 15 kV/µs.

All models have wide 2:1 input ranges and precisely regulated output voltages with high efficiencies up to 90%, allowing safe operation from -40°C to +85°C. ITE Safety Certification to IEC/EN/UL 623681 and the CB Report make the TRI series perfect for many demanding applications in the industrial, transportation, and instrumentation sectors.

Features

• High isolation/peak isolation/working voltages:
• 3.5 W to 10 W models: 7071 V_DC / 9000 V_DC / 1000 V_AC
• 15 W to 20 W models: 5940 V_DC / 8000 V_DC / 1000 V_AC
• Common mode transient immunity (dv/dt) 15 kV/µs
• Operating temperature range of -40°C to +85°C
• Overload, overvoltage, and short circuit protection
• Integrated EN55032 Class A Filter
• IEC/EN/UL 62368-1 Safety Approvals
• >1 million hours MTBF
• 3-year warranty
