NCS1-Slide4

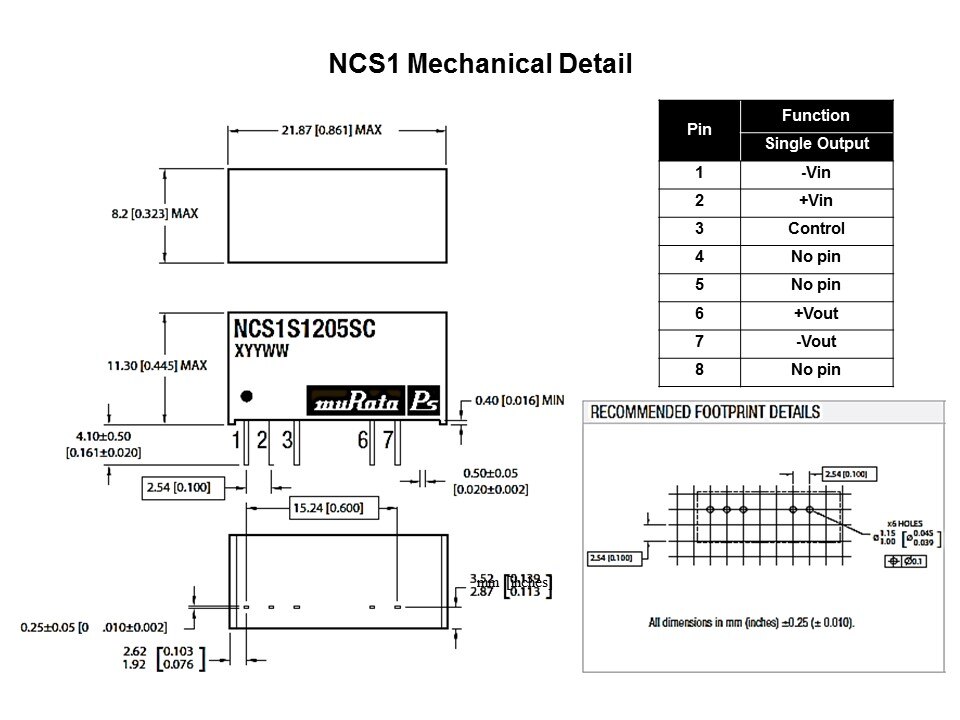

Shown here are the mechanical details for the NCS1 series in an industry-standard package SIP. Note that this is an eight-pin SIP package, with pins 4, 5, and 8 unpopulated, other supplier’s with similar offerings populate pin positions 5 and 8 with “no-connect” designations. In addition, compared to other suppliers, the NCS1 package is 1mm smaller in the depth dimension, making it 9% smaller in both volume and circuit board footprint than other suppliers models.

PTM Published on: 2015-05-28
