Name: UWD1H470MCL1GS
Brand: Nichicon
SKU: 493-9681-2-ND
Price: 100.1 JPY
Availability: InStock

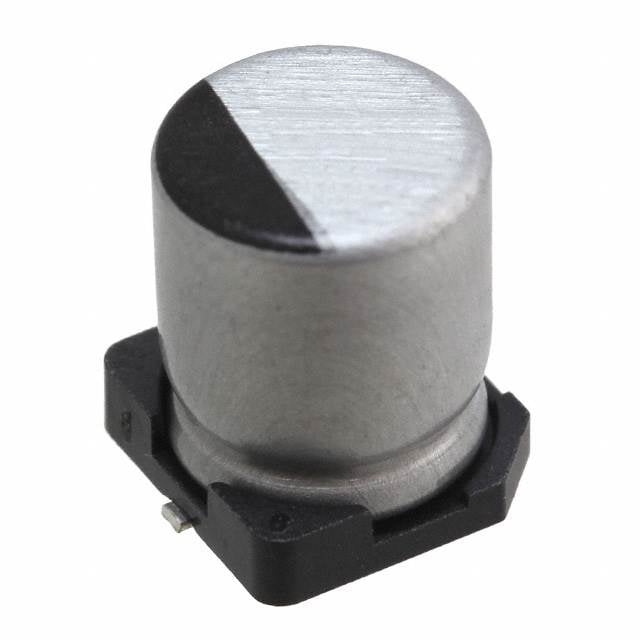

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

UWD1H470MCL1GS
DigiKey Part Number	493-9681-2-ND - Tape & Reel (TR) 493-9681-1-ND - Cut Tape (CT) 493-9681-6-ND - Digi-Reel®
Manufacturer	Nichicon
Manufacturer Product Number	UWD1H470MCL1GS
Description	CAP ALUM 47UF 20% 50V SMD
Manufacturer Standard Lead Time	33 Weeks
Customer Reference
Detailed Description	47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	Datasheet
EDA/CAD Models	UWD1H470MCL1GS Models

Product Attributes

Type	Description	Select All
Category	Capacitors Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWD
Packaging	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Part Status	Active
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	General Purpose
Ripple Current @ Low Frequency	92.5 mA @ 120 Hz
Ripple Current @ High Frequency	185 mA @ 100 kHz
Impedance	680 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.303" (7.70mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
