89116-0001 is out of stock and can be placed on backorder.
Available Substitutes:
Similar
Similar
Similar
Similar

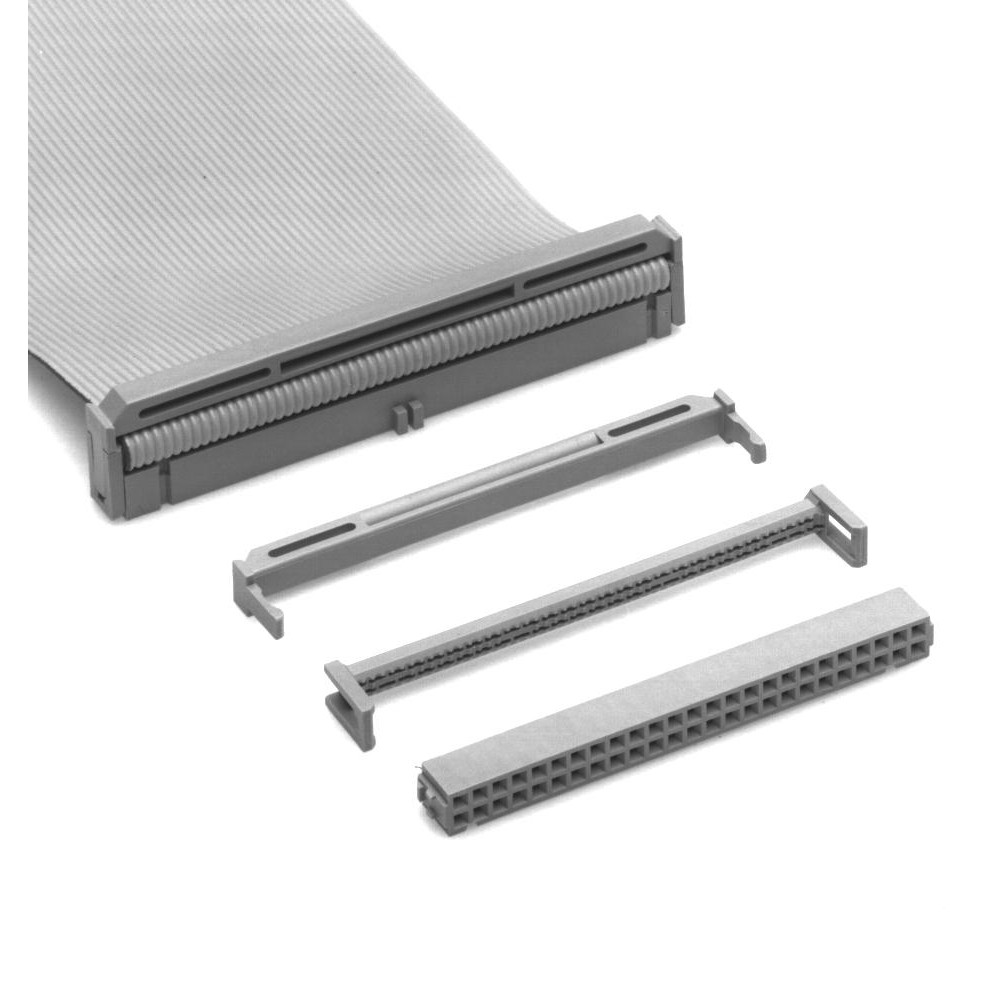

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
89116-0001 | |
|---|---|
DigiKey Part Number | MSC16A-ND |
Manufacturer | |
Manufacturer Product Number | 89116-0001 |
Description | CONN RCPT 16P IDC 26-28AWG GOLD |
Manufacturer Standard Lead Time | 13 Weeks |
Customer Reference | |
Detailed Description | 16 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG |
Datasheet | Datasheet |
EDA/CAD Models | 89116-0001 Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Manufacturer | 3M | |
Series | ||
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 16 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Mounting Type | Free Hanging (In-Line) | |
Fastening Type | - | |
Cable Termination | IDC | |
Wire Type | Ribbon Cable | |
Wire Gauge | 26-28 AWG | |
Features | Feed Through | |
Contact Finish | Gold | |
Contact Finish Thickness | 30.0µin (0.76µm) | |
Color | Gray | |
Base Product Number |
0 In Stock
Check Lead Time
Request Stock Notification
Quantity
All prices are in JPY
Bulk
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | ¥210.00000 | ¥210 |
| 10 | ¥178.80000 | ¥1,788 |
| 25 | ¥167.52000 | ¥4,188 |
| 50 | ¥159.54000 | ¥7,977 |
| 100 | ¥151.91000 | ¥15,191 |
| 250 | ¥142.39200 | ¥35,598 |
| 500 | ¥135.59000 | ¥67,795 |
| 1,000 | ¥129.11700 | ¥129,117 |
| 2,500 | ¥121.87480 | ¥304,687 |
| Unit Price without JCT: | ¥210.00000 |
|---|---|
| Unit Price with JCT: | ¥231.00000 |
