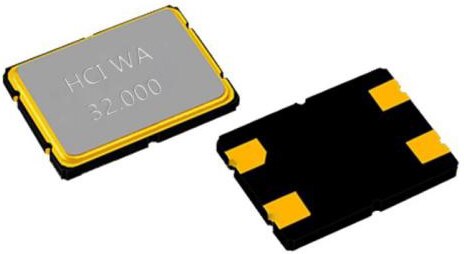

XC21M4/XC22M4/XC53M4/XC75M4 Series Quartz Crystals

SUZHOU HANGJING's XC21M4 series quartz crystals are a robust solution in automotive-grade crystal applications. The XC22M4, XC53M4, and XC75M4 series quartz crystals offer a powerful solution in tight tolerances and stabilities over temperature range applications.

The XC21M4 series of packaged crystals have a footprint of 2.00 mm x 1.60 mm and a height of 0.45 mm. They are available in fundamental mode frequencies from 20 MHz to 60 MHz. The XC22M4 series of packaged crystals have a footprint of 2.55 mm x 2.05 mm and a height of 0.60 mm. They are available in fundamental mode frequencies from 8 MHz to 55 MHz. The XC21M4 and XC22M4 series are fully RoHS compliant and delivered on 8 mm tape-and-reel with 3,000 pieces per reel.

The XC53M4 series of packaged crystals have a footprint of 5.00 mm x 3.20 mm and a height of 1.00 mm. They are available in fundamental mode frequencies from 8 MHz to 55 MHz. The XC75M4 series of packaged crystals have a footprint of 7.00 mm x 5.00 mm and a height of 1.60 mm. They are available in fundamental mode frequencies from 6 MHz to 100 MHz. The XC53M4 and XC75M4 series are fully RoHS compliant and delivered on 8 mm tape-and-reel with 1,000 pieces per reel.
