SMx Series Resistors
Isabellenhuette SMx series resistors provide long-term stability and high pulse power rating

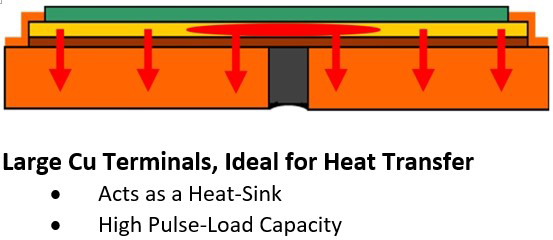

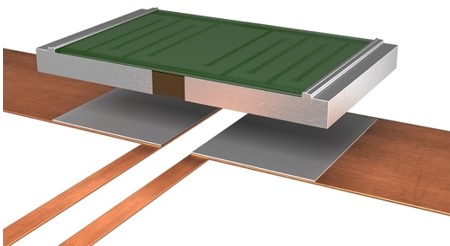

Isabellenhuette SMx series resistors push users' designs further with some of the industry's highest pulse-load ratings. The SMx family of products comes in three popular package sizes with power ratings to 7 W. Large copper terminals act as built-in heat sinks, ideally suited for dissipating heat. SMx resistors provide optimal long-term stability for demanding applications, including power modules, frequency converters, control systems for automotive, and power hybrid solutions.
Resources
Highlights
- Package sizes 2817, 2512, and 1206
- Power rating up to 7 W (SMT 2817)
- Excellent long-term stability
- High-runner series with various ohmic values: 4 mOhm up to 4.7 Ohms
Features
- 7 W power rating at +70°C
- Constant current up to 35 A (4 mOhm)
- Excellent long-term stability
- High pulse power rating
- Mounting: Reflow- and IR-soldering
- AEC-Q200 qualified
- RoHS 2011/65/EU compliant
Applications
- Current sensors for power hybrid applications
- Control systems for the automotive market
- Power modules
- Frequency converters
- Switch mode power supplies
SMx Series Resistors
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | SMS-R005-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.005 | 11312 - Immediate | $667.00 | View Details |
| | SMS-R100-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.1, | 17713 - Immediate | $625.00 | View Details |
| | SMS-R250-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.25, | 4228 - Immediate | $625.00 | View Details |
| | SMS-R500-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.5, | 14614 - Immediate | $625.00 | View Details |
| | SMS-R390-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.39, | 4319 - Immediate | $625.00 | View Details |
| | SMS-R030-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.03, | 4561 - Immediate | $625.00 | View Details |
| | SMS-R200-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.2, | 8066 - Immediate | $625.00 | View Details |
| | SMS-R050-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.05, | 15460 - Immediate | $625.00 | View Details |
| | SMS-R033-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.033 | 3265 - Immediate | $625.00 | View Details |
| | SMS-R0075-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.007 | 4044 - Immediate | $667.00 | View Details |
| | SMS-R018-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.018 | 4733 - Immediate | $667.00 | View Details |
| | SMS-R010-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.01, | 7459 - Immediate | $667.00 | View Details |
| | SMS-R040-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.04, | 13804 - Immediate | $625.00 | View Details |
| | SMS-R015-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.015 | 4667 - Immediate | $667.00 | View Details |
| | SMS-R020-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.02, | 4480 - Immediate | $667.00 | View Details |
| | SMS-R180-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.18, | 4238 - Immediate | $625.00 | View Details |
| | SMS-R150-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.15, | 7321 - Immediate | $625.00 | View Details |
| | SMS-1R00-1.0 | RESISTOR - ISA-PLAN SHUNT, 1, 1% | 12190 - Immediate | $625.00 | View Details |
| | SMS-R680-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.68, | 18095 - Immediate | $625.00 | View Details |
| | SMS-R075-1.0 | RESISTOR - ISA-PLAN SHUNT, 0.075 | 2947 - Immediate | $625.00 | View Details |
