RFPC-SMA31/SMA32 IP67 Rated End-Launch SMA Connectors
GCT extends its Gradconn series of products with end-launch SMA connectors that are IP67-rated

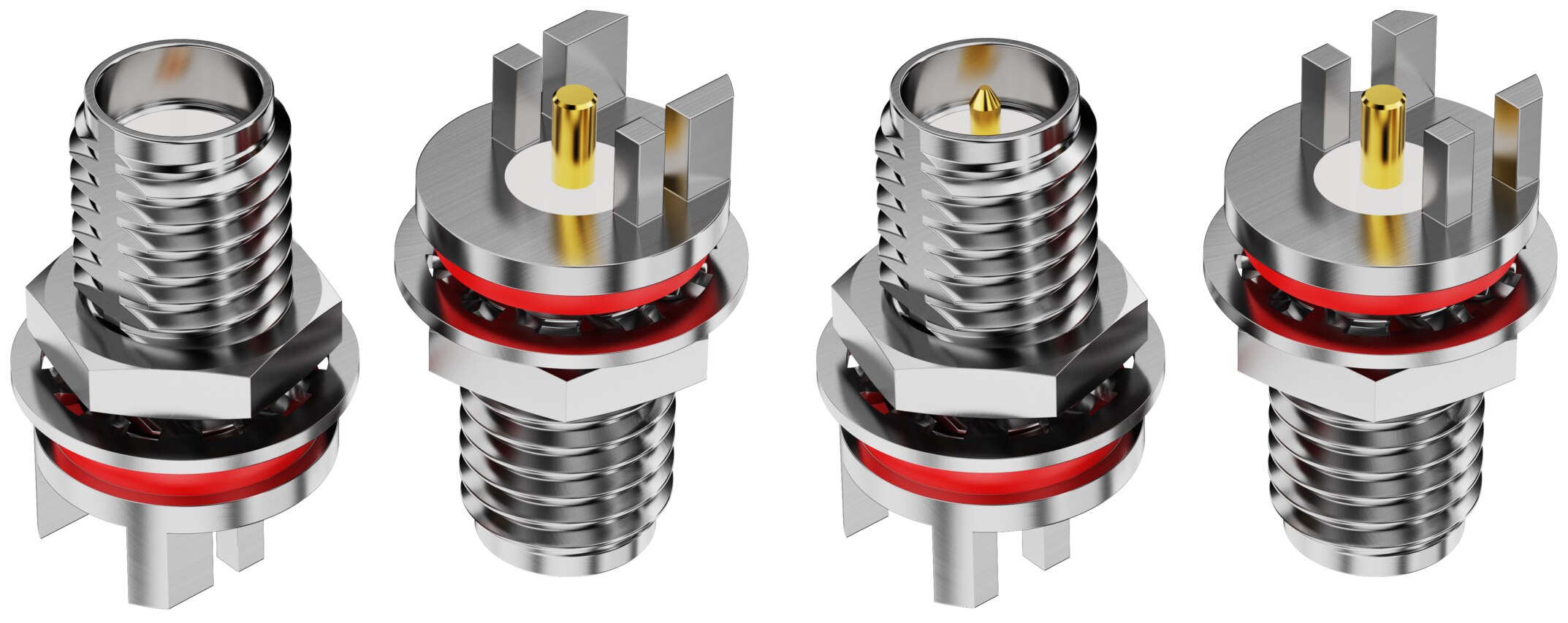

GCT extends its Gradconn series with the RFPC-SMA31 and RFPC-SMA32, a line of 6 GHz SMA end-launch connectors, offering a value-engineered solution for applications requiring IP67 performance. These connectors provide superior signal integrity, require 37% less PCB space than right-angled alternatives, and are 37% lower in profile. They are designed for easy installation on the edge of the PCB and offer maximum RF grounding points. Two options are available to accommodate different PCB thicknesses.
Features
- IP67-rated mated and unmated
- 6 GHz frequency
- Standard and reverse polarity versions
- Options for 1.6 mm and 0.8 mm thick PCBs
Applications
- Antennas
- Broadcast
- Cellular
- Microwave radio
- Radios
- Satellite communication
- Base stations
- Test and measurement
- Instrumentation
- Radar
- RF and microwave components
SMA31/SMA32 IP67 Rated End-Launch SMA Connectors
| Image | Manufacturer Part Number | Description | Connector Style | Connector Type | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
 |  | RFPC-SMA31-FN-095-A | SMA, HORIZONTAL JACK, STANDARD P | SMA | Jack, Female Socket | 238 - Immediate | $523.00 | View Details |
| | RFPC-SMA31-FN-175-A | SMA, HORIZONTAL JACK, STANDARD P | SMA | Jack, Female Socket | 970 - Immediate | $523.00 | View Details |
|  | RFPC-SMA32-FN-095-A | SMA HORIZONTAL JACK, REVERSE POL | RP-SMA | Jack, Male Pin | 124 - Immediate | $523.00 | View Details |
| | RFPC-SMA32-FN-175-A | SMA HORIZONTAL JACK, REVERSE POL | RP-SMA | Jack, Male Pin | 0 - Immediate | $523.00 | View Details |
Published: 2024-10-21
