Next-Generation BMS Signal Planar Transformer - SM91806AL-E

Bourns’ AEC-Q200 compliant planar transformer is designed for battery management systems

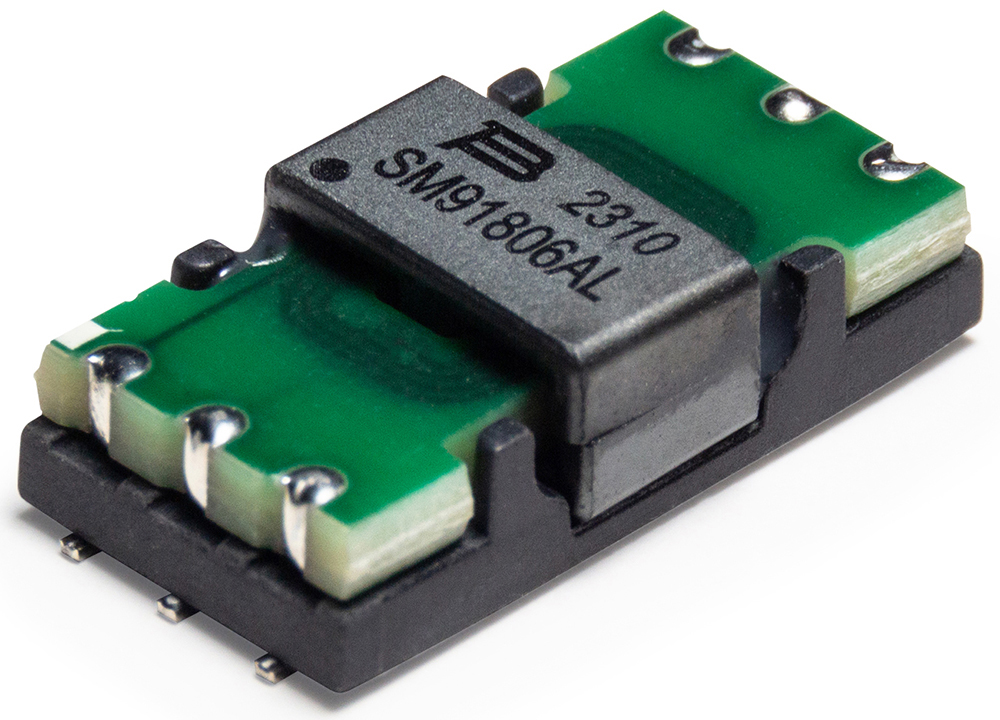

Image of Bourns' Next-Generation BMS Signal Planar Transformer - SM91806AL-EBourns’ model SM91806AL battery management system (BMS) planar transformer was developed for BMS application use with Analog Device’s LTC6815 series, NXP’s MC33771C series, and Texas Instruments’ BQ79616. This BMS transformer offers a working voltage of up to 1,000 VDC and hipot isolation voltage of up to 4,300 VDC or 3,000 VAC with an extended operating temperature range of -40°C to +125°C. Bourns’ manufacturing process improved the quality and cost-effectiveness of this transformer with creepage distance >8.2 mm, overvoltage category II and clearance distance >8.2 mm, pollution degree 2, material group CTI I.

Features
  • Planar technology for BMS signal applications
  • Working voltage: up to 1000 VDC
  • Hipot: 4300 VDC or 3000 VAC
  • Basic insulation compliant with IEC 60664-1/61558-1/62368-1 standards
  • Clearance distance >8.2 mm, pollution degree 2, material group CTI I
  • Creepage distance >8.2 mm, overvoltage category II
  • Partial discharge level up to 1200 V per IEC 60664
  • Expanded temperature range: -40°C to +125°C
  • RoHS compliant and halogen-free
  • AEC-Q200 compliant
Applications
  • BMS
  • Energy storage systems (ESS)
