SEN0213 Datasheet by DFRobot



HeartRateMonitorSensorSKU:SEN0213

FromRobotWiki



HeartRateMonitorSensorSKU:SEN0213

Contents



1Introduction



2Specification



3BoardOverview



4Tutorial

4.1Requirements

4.2ConnectionDiagram

4.3SampleCode

4.4ExpectedResult

Introduction

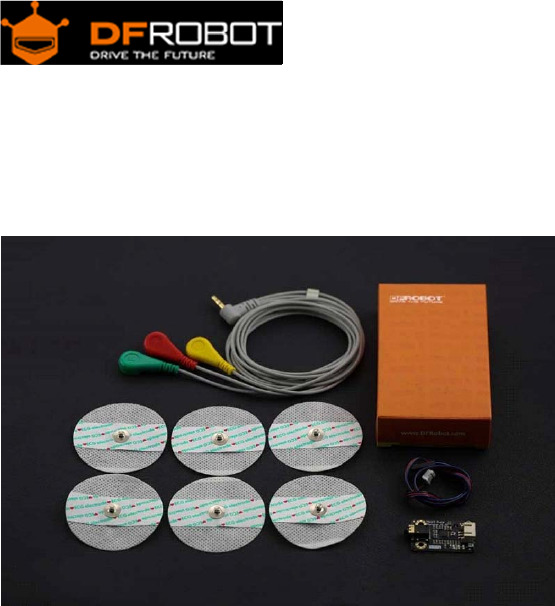

The DFRobot Heart Rate Monitor Sensor is used to measure the electrical activity of the heart.

This electrical activity can be charted as an ECG and output as an analog reading. An ECG

signal can be extremely noisy so we have included an AD8232 chip on the PCB which will

provide a clear signal from the PR and QT Intervals. Using the Arduino IDE "Serial Plotter"

feature you are also able to view plotted ECG output on your PC!

GI\D VCC Awg 09 Out 3.5mm Jac< fo'="" biomed'ca="" pad="" comect'm="">



Please Note: This product is NOT a medical device and is not intended

to be used as such or as an accessory to such nor diagnose or treat any

conditions.

Specification

 InputVoltage:3.3‐6V(5Vrecommended)

 OutputVoltage:0‐3.3V

 Operatingcurrent:<10mA

 Dimension:35x22(mm),1.378"x0.866"(in)

 InterfaceType:PH2.0‐3P

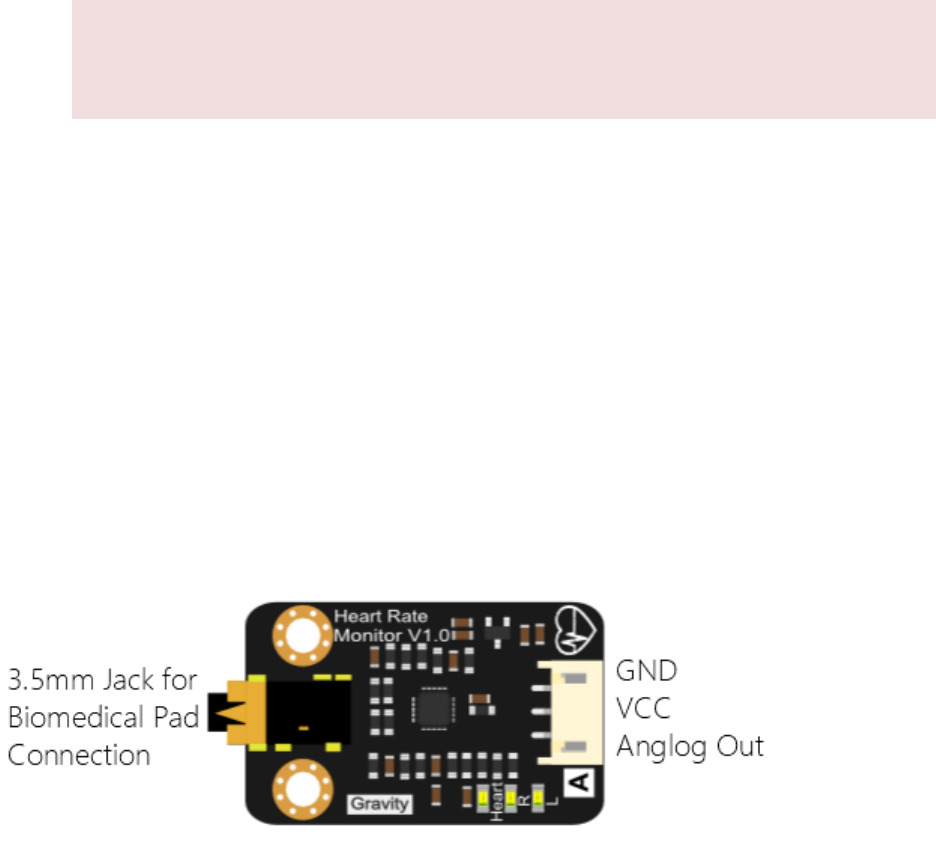

BoardOverview



Tutorial

Requirements

 Hardware

o DFRduinoUNO(orsimilar)x1

o HeartRateMonitorSensorx1

o Sensorcable‐ElectrodePads(3connectors)x1

o BiomedicalSensorPadx1

o Jumperwires

 Software

o ArduinoIDEV1.6.6orabove,ClicktoDownloadArduinoIDEfromArduino®

o https://www.arduino.cc/en/Main/Software

ConnectionDiagram



NOTE: An ECG signal can be quite noisy because of muscle activity. The further

sensor pads are from the heart, the more muscle noise you will see. To improve the

signal quality, follow these simple tips:

 Keepsensorpadsasclosetotheheartasyoucan

 MakesuretheRAandLAsensorpadsareoncorrectsidesoftheheart

 Trynottomovetoomuchwhiletakingameasurement

 Trytousefreshpadsforeachmeasurement.Thepadsloosetheabilitytopass

signalswithmultipleapplications

 Prepareandcleantheareayouplantostickpads.Thiswillhelpmakeagood

connection(hairisnotagoodconductor)

 Youmayhavetoadjustsensorplacementfordifferentindividuals

SampleCode

1 /*!

2 * @file HeartRateMonitor.ino

3 * @brief HeartRateMonitor.ino Sampling and ECG output

4 *

M905. | Atduino 1.6.9 — El ad- [HI Help MW and mm ‘905 Fm Enamﬁlg a Rdmd set Saiallhnilm cwsmm put —

5 * Real-time sampling and ECG output

6 *

7 * @author linfeng(490289303@qq.com)

8 * @version V1.0

9 * @date 2016-4-5

10 */

11 const int heartPin = A1;

12 void setup() {

13 Serial.begin(115200);

14 }

15 void loop() {

16 int heartValue = analogRead(heartPin);

17 Serial.println(heartValue);

18 delay(5);

19}

ExpectedResult

1. OpentheArduinoIDE1.6.6(orabove)"SerialPlotter";



Open"SerialPlotter"



2. Thenyoucouldseetheoutputsignalfromthemicrocontroller‐A1port,theECG.



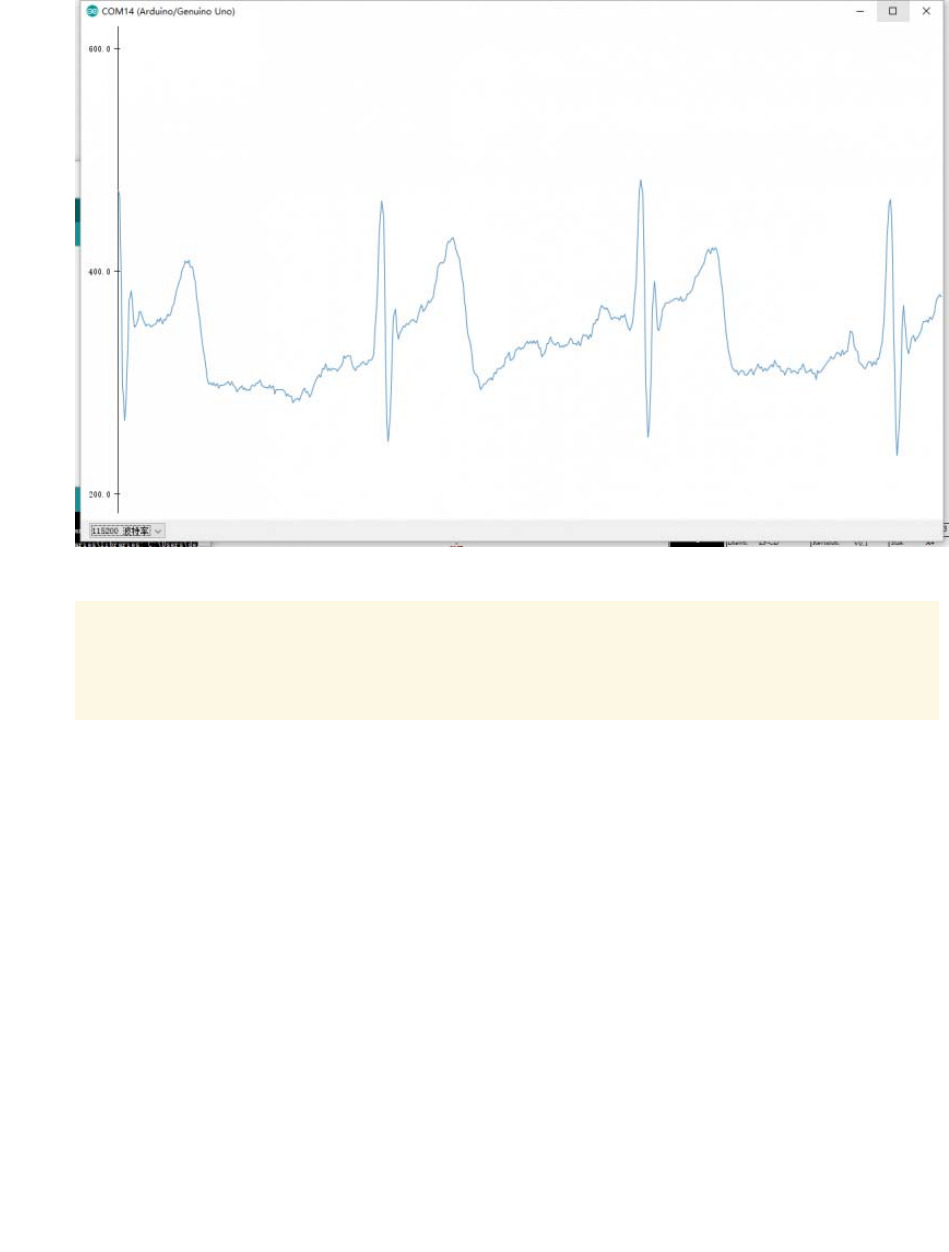

Sampleoutputofthissensor

NOTE: If you found there was a lot of jamming waveforms, they may come from the

body's static electricity. Touch something metal to discharge any static electricity.
